Roundscan 555 HR (Jenoptik, Hommel-Etamic, Niemcy)
A stand for unequivocal measurement of form and positional tolerances
MEASUREMENTS:
roundness
coaxiality, concentricity
radial axal run out
totalradial axal run out
prostopadłość
parallelism
perpendicularity
cylindricity
straightness
angularity
SPECIFICATION:
measurable diameter: 430 mm.
measurable height: 550 mm.
measuring axes: C, Z, R, X, Y.

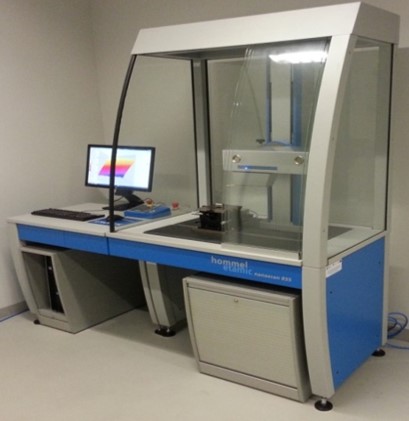

Waveline Nanoscan 855 (Jenoptik Industrial Metrology Germany GmbH, Germany)
A stand for simultaneous control of roughness and surface contour in one pass
MEASUREMENTS:
roughness
surface topography
contour
SPECIFICATION:
measuring range: 24 mm
resolution: 0,6 nm
positioning accuracy: ±25 μm
prędkość pomiaru: od 0,1 do 3 mm/s
LH 65 Coordinate Measuring Machine (Wenzel Group GmbH & Co. KG, Germany)
Geometry measurements of rotationally symmetrical and prismatic parts
EQUIPMENT:
touch trigger measuring system RENISHAW PH20
SPECIFICATION:
measuring ranges [mm]:
X = 650, Y = 750, Z = 500
accuracy: 2,5 μm + L/300
LEITZ Infinity Coordinate Measuring Machine (Hexagon Metrology, Germany)
A reference measuring machine for manufacturing, quality control centers and metrology labs
EQUIPMENT:
“Closed Frame” design with fixed portal and moving table
separated air conditioning system (Weisstechnik)
SPECIFICATION:
measuring ranges [mm]:
X = 1200, Y = 1000, Z = 600
measuring error: 0,2 μm
accuracy: 0,3 μm + L / 1000
max. positioning speed: 400 mm/s
max. acceleration: 3000 mm/s2
scales resolution: 0.004 µm

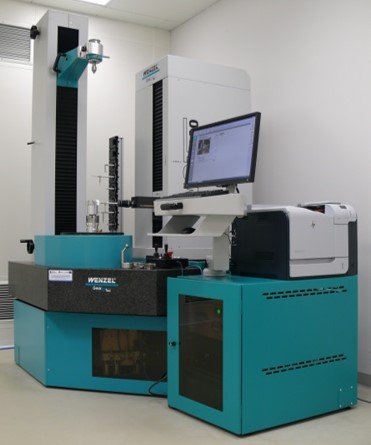

WGT 600 Specialized 4-axis Measuring Machine for gears (Wenzel Group GmbH & Co. KG, Germany)
Measurements of gears and gear machining tools using specialized measuring device
SPECIFICATION:
accuracy: Group 1 acc to VDI/VDE 2612/13
measuring range [mm]: X = 500, Y = 320, Z = 650
measurable diameter: 430 mm

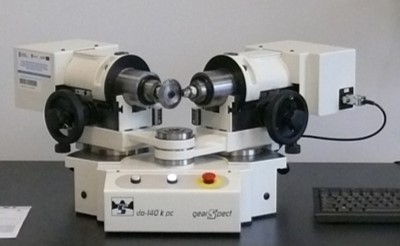

Stans for Single Flank of Bevel and Cylindrical Gears Measurements: do 140 k, do 2 pc
do 140 k pc: stand for single flank of bevel gears measurements
do 2 pc: stand for single flank of cylindrical gears measurements

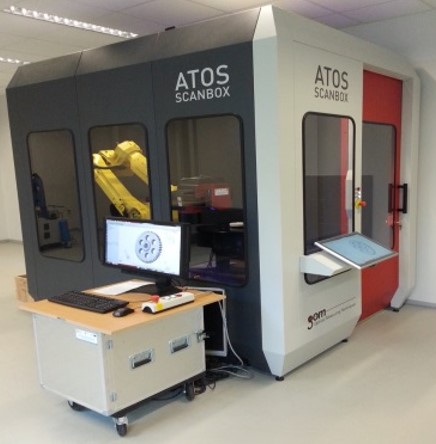

ATOS ScanBOX 5108 with ATOS III Triple Scan 3D scanner (GOM GmbH, Germany)
3D coordinate measuring, full field scanning & inspection, quality control, reverse engineering, GD&T analysis
SPECIFICATION (box):
dimensions: 2000 × 2550 × 2700 mm
max. diameter of part: Ø 800 mm
maks. weight of part: 300 kg
SPECIFICATION (scanner):
accuracy: < 0,02 mm
working distance: 490 x 2 000 mm
resolution: 3296 x 2472 px
measuring points per scan: 8 mln
